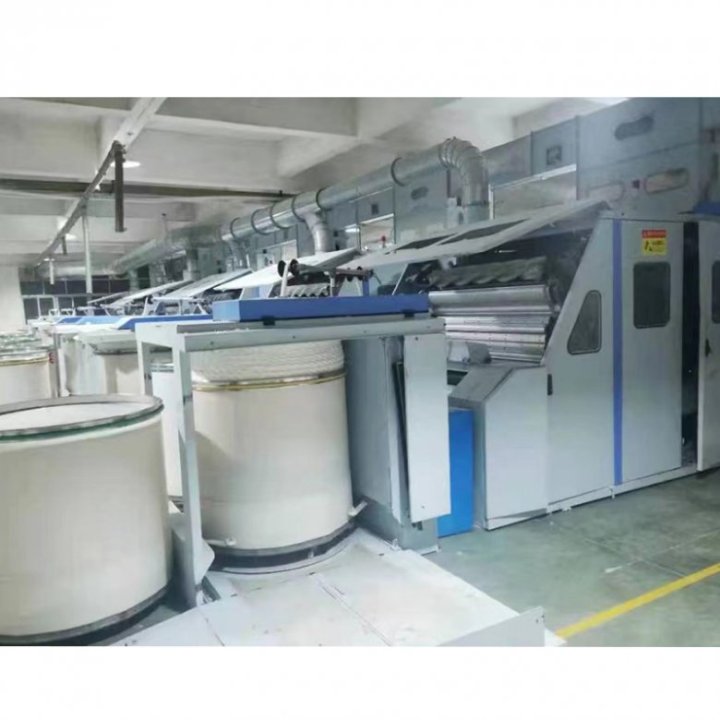

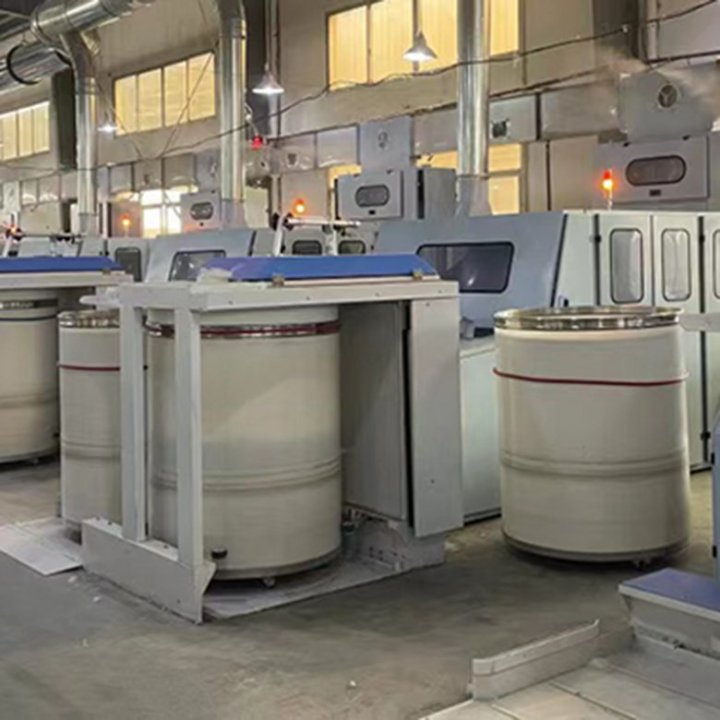

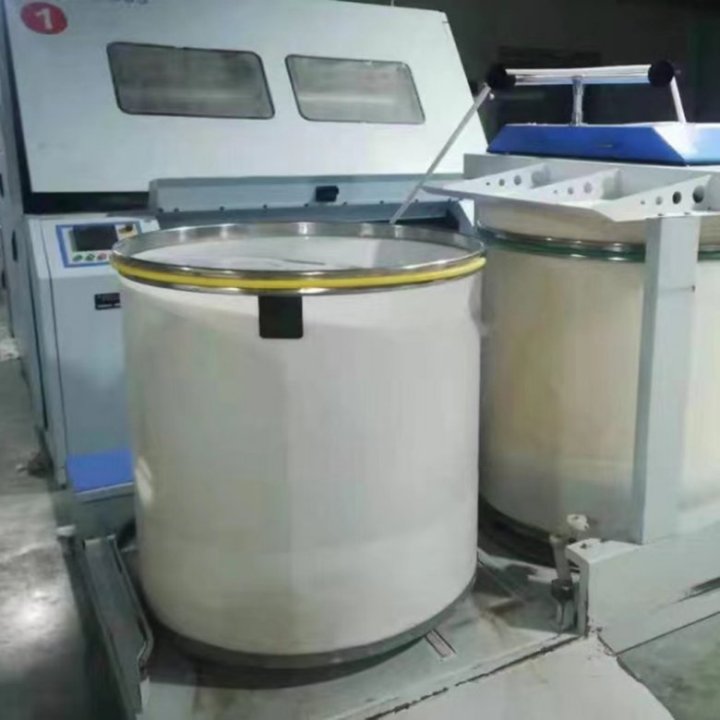

This machine is to wrap the raw strips sorted by the carding machine into a cotton sliver tube with a diameter of 600mm in a neat and orderly manner according to a certain law, so as to be used by the equipment of the next process; The equipment adopts an ultra-thin structure, which does not need to be hollowed out and can be used directly on the ground.
Structural features:
The chassis adopts an ultra-thin structure, which does not need to be hollowed out and can be used directly on the ground.
The chassis and the coiler adopt the principle of inverse motion, and the stem is increased by more than 20% compared with the previous coiler.
The linear cylindrical coil strip machine saves 33% of the land occupied by the rotary cylindrical coil stripper.
The new 42mm inclined tube chassis is used to replace the previous 38mm inclined tube chassis, which has a good strip shape, good drying, and is not easy to block the pipe.
Cut strips outside the machine, the speed of the dorf will not be reduced when changing the cylinder, the quality of the raw strips is stable, and the raw materials are saved.
The equipment adopts a flexible design concept, which not only improves the overall rigidity of the equipment, but also the overall aesthetics is also very beautiful.
Rubber wheels are used instead of the previous nylon wheels to protect the sliver barrel and have a longer lifespan.
The distance from the loop sliver to the edge of the tube can be adjusted, which makes the sliver in the tube fuller, improves the dry quality of the sliver and the stability of transportation in Germany.
The strip cutting device adopts a multi-knife short-stroke structure, with a high short strip rate and no strip wrapping.
Key Specifications:
Barrel diameter: 600mm
Barrel height: 1100/1200mm
Capacity: 100kg/h
Equipment width: 1111 Height: 1700/1800 Length: 1620
