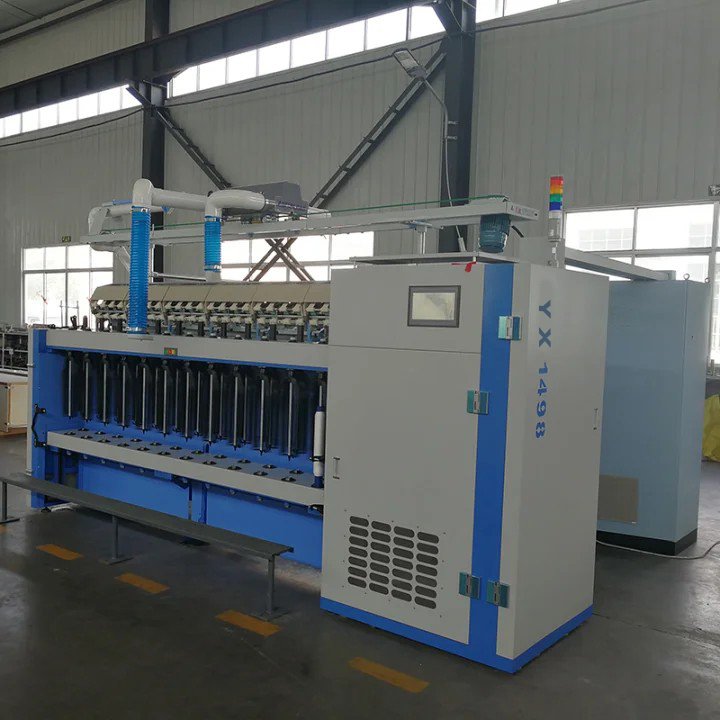

Features:
Technical Advantages and Function
1. Newly developed high-speed closed type flyer
2. Building mechanism by mechanical and electronic integration
3. Control by PLC and interver with soft start
4. Full package auto-control device and roving stop at set length/position/direction
5. Liquid crystal display (LCD)
High Quality:
1. 3-roller or 4-roller drafting systerm
2. Perfect cleaning systerm for decreasing the roving faults
3. Good roving, less hairness and minimize roving
Versatile and Low Consumption:
1. Suitable for cotton, polyester, rayon and blends of 22-65mm
2. Spindle gauge is 216mm. Floor space is minimum at full package of Φ152mm
3. Operation and maintenance easy
4. High reiability and low failure rate
5. Low roving breakage
Specifications | ||
Spindle gauge | 194mm | |
Spindle number | 96,108,120,132,144 | |
Package dimension(mm) | Φ135*400 | |
Bobbin dimension(mm) | Φ45*445 | |
Drafting system | Four-roller or three-roller double apron drafting system | |
Drafting multiple | 4.2-12 | |
Twist range | 18-80 | |
Length for fiber | 22-55mm(four roller) 51-65mm(three roller) | |
Density for yarn | 200-1250 | |
Pressing form | Pendulum spring pressing, Pneumatic weight arm, leaf spring pressing | |
Bottom roller diameter(mm) | Φ28.5,Φ28.5, Φ28.5, Φ28.5 | |
Top roller diameter(mm) | Φ28.8,Φ28.8, Φ25, Φ28.8 | |
Cleaning device | Positive revolving belt with revolving suction device | |
Max Mechanical speed | 1600r/min | |
Transmission device | Three frequency inverter motor | |
Control type | Computer control | |
Man-machine interaction | Touch screen | |
Winding transmission | Gear transmission | |
Flyer transmission | Gear transmission | |
Winding power shaft | Universal shaft | |
Differential device | Visible oil bath differential box | |
Reversing device | Software | |
Yarn forming angle | Software | |
Three auto doffing | Software | |
Signal display | Five lamps indicated on machine headstock | |
Tension adjustment | Software | |
Tension fine adjustment | Software | |
Unevenness preventing | Software | |
Sliver fault preventing | Software | |
Winding density adjustment | Software | |
Twist changing | Twist gear | |
Can diameter | Φ400 Φ500 Φ600 | |
Motor power | Main motor 7.5kw; Gear motor 7.5kw; Rail motor 0.75kw | |
Noise standard | <85 | |
Overall dimension | 14565*3477(4365)mm | 13005*3477(4365)mm |
Weight | 11.2 tons | 10.9 tons |
