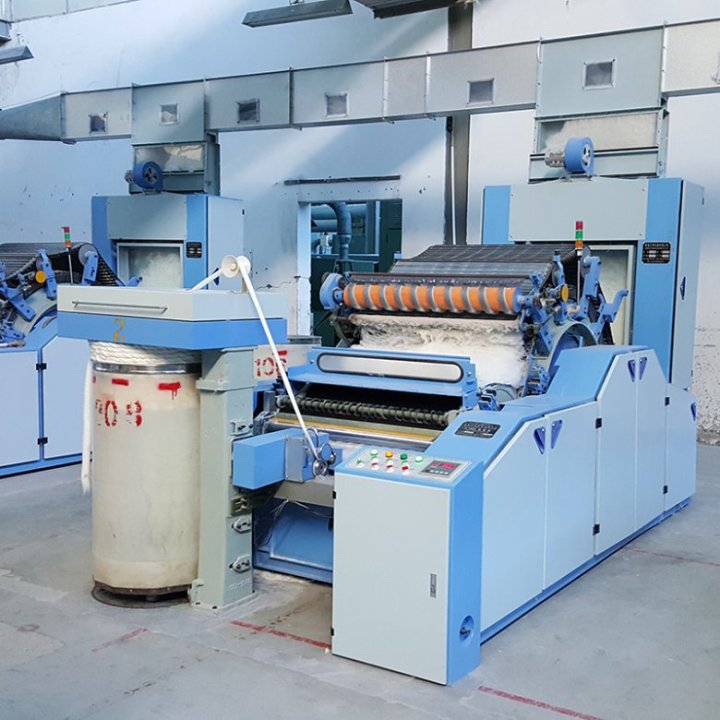

1. Unique three-roller stripping;
2. Increase the barbed roller carding plate;
3. Add the front four and rear two fixed cover plates;
4. Doffer speed: frequency conversion speed regulation parameter meter;
5. A new type of coil (square type);
6. a left and right closed safety cover;
7. High-quality metal card clothing;
8. Synchronous belt transmission, stable and noiseless.
Scope of application | This machine is suitable for pure spinning and blending of pure cotton chemical fiber |
Production quantification | 3.51~6.5g/m |
Yield (kg) | Up to 35 kg |
Working width (mm) | 1000 mm |
Additional carding parts | A set of barbed roller carding plates, two rear fixed cover plates, and four front fixed cover plates |
Doffer Working Diameter (mm) | Φ706 mm |
Doffer working speed (rpm ). | 21.3~38.2 |
Suitable for sliver barrel (diameter * height). | Φ600*900mm, Φ600*1100mm |
Dusting | Cylinder, Astoria Triangle, Barbed Roller Cover |
Continuous suction volume (m³/h). | 1300 |
Wind pressure (Pa) | 500~600 pa |
Total installed power (kW) | 4.8kw |
Main motor (kW) | 3.3 kw |
Astori motor (kW) | 1.5 kW (inverter control). |
Floor area (L*W) (mm). | 3809*2092 |
Weight (kg) | About 4500 kg |
